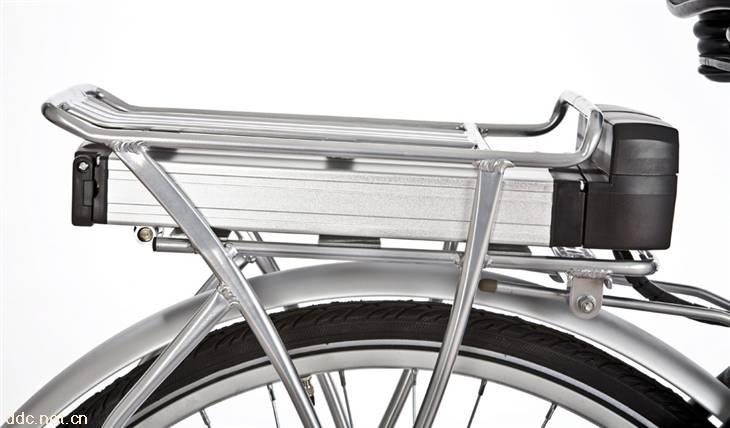

Back carrier 48v 10Ah electronic bicyle battery

Model

 Rear Carrier

Battery Material

Li-ion

Nominal Voltage

48V

Rated Capicaty

10Ah

Pack Dimension(Type A)

70×148×420(mm)

Pack Dimension(Type B)

68×148×420(mm)

Internal Impedance

≤100mΩ

Max Charge Voltage

54.6V

Max Charge Current

4A

Min Discharge Voltage

39V

Rated Discharge Current

10A

Max Discharge Current

20A

Charging Mode

CC/CV

Pack Weight

About 4.5kg

Over Current Protection

25A±3A

Cycle Life

600 times

Charge Temperature

0-45°C

Discharge Temperature

-20-55°C

Certificates

CE

Range with one charge

≥40km (Motor 250W)

Charger

AC Input

100-240V,50/60Hz

DC Output

55V 2A

Dimension

Charging Time

About 8h

Safe Demand

CCC CE

Wire Length

AC 1m  DC 1m

DC Pulg

Inside:+ Lateral:-
